Voltage Regulator Rectifier - KTM / Yamaha (Assorted Fitments)
Brand new aftermarket voltage regulator rectifier.
- Direct replacement to the original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher grade of electric components
- The quality exceeds the OEM equipment
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.
Before installing the new voltage regulator rectifier:
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Dimensions:
- Width: 88 mm
- Length: 79 mm
- Height: 27 mm
- Wires length: 110 mm
Other specifications:

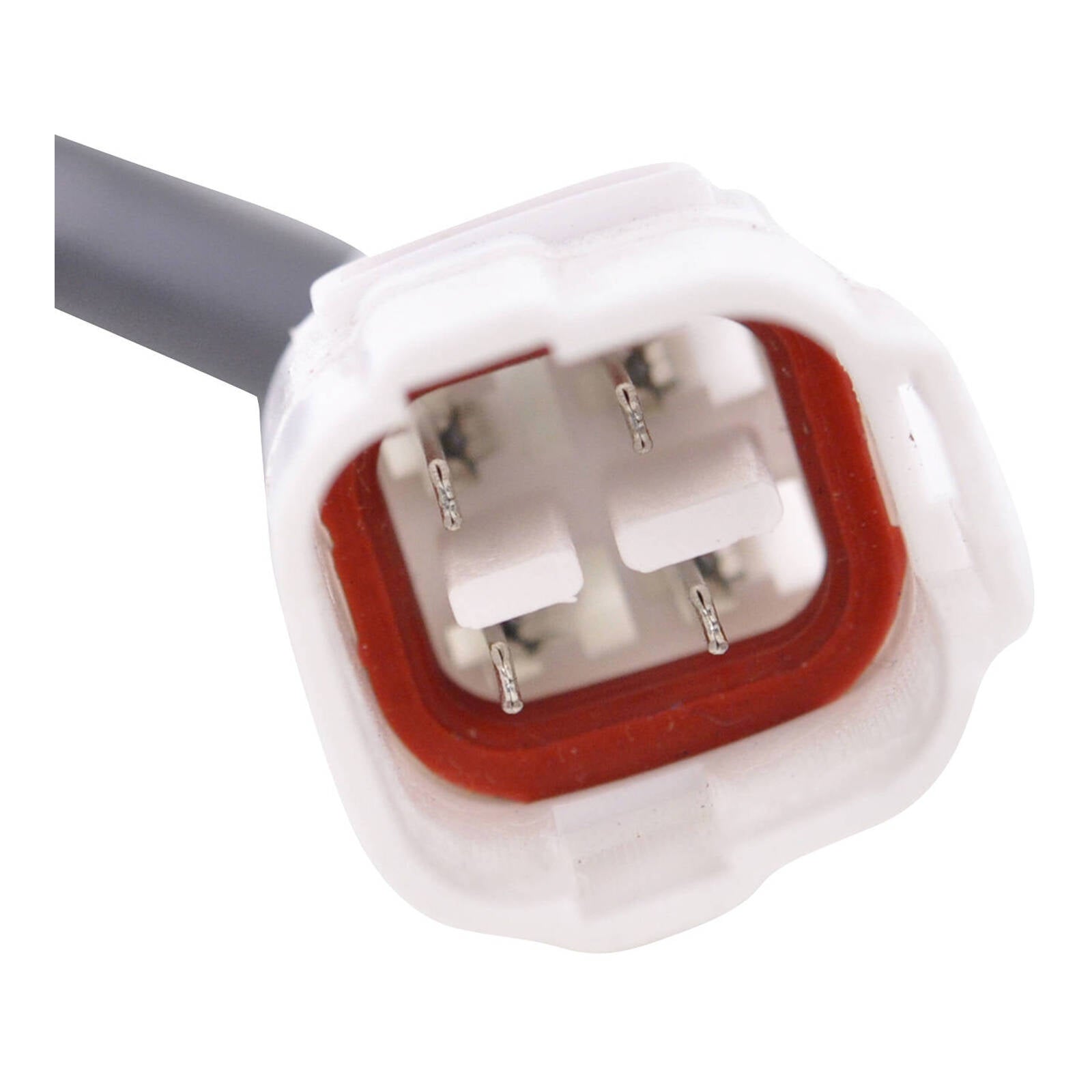

- Number of plugs: 1
- Number of pins: 4
- Number of wires: 4
- Minimum Charging Voltage: 14.5 V +/- 0.5 V
- Maximum Charging Current: 20 A / 150 W
- Open Circuit Voltage: < 15 V
- Operation Temperature: -20°C to 85°C
