Stator Yamaha YZ65 '18-'24 & YZ85 '02-'24 (RMS010-108281)

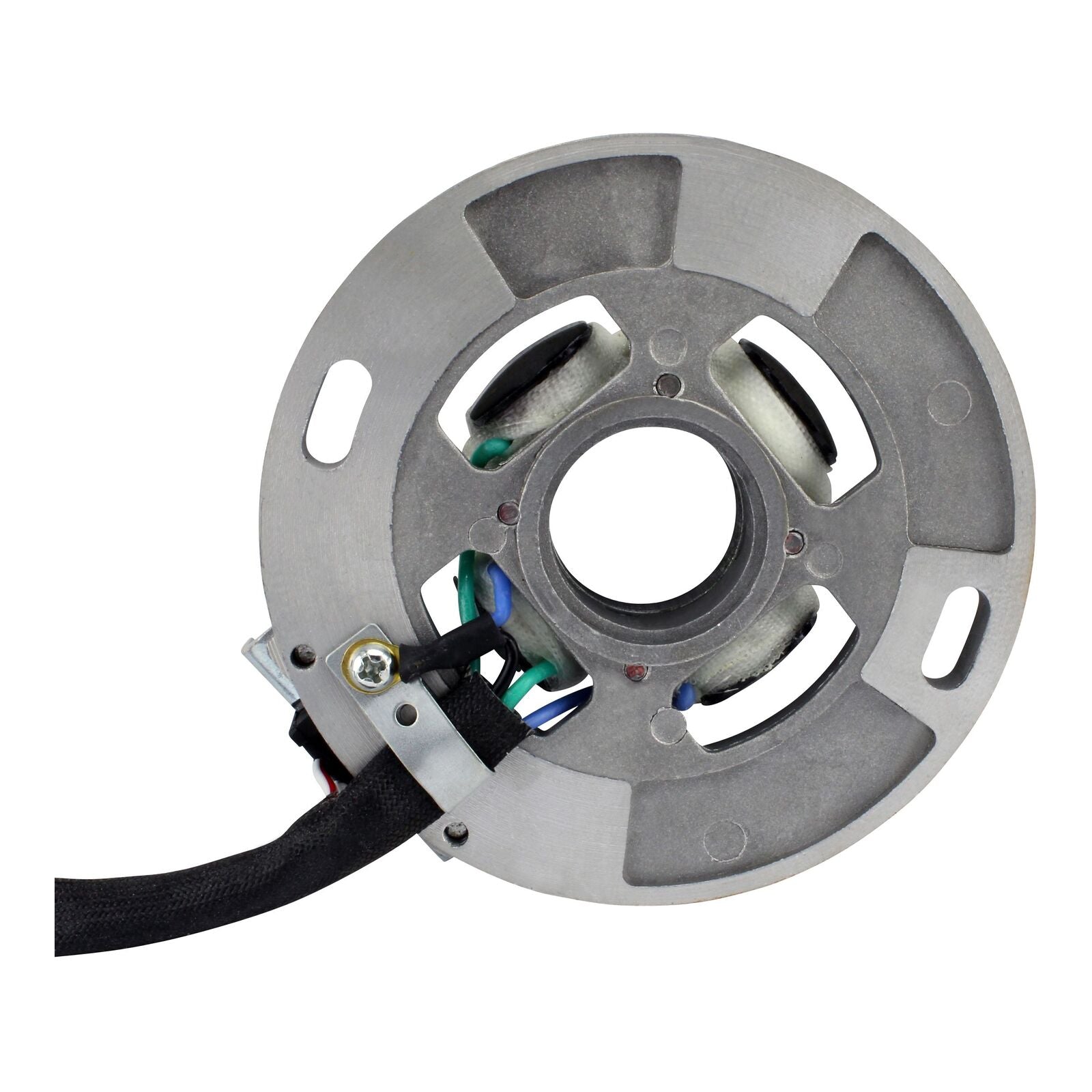

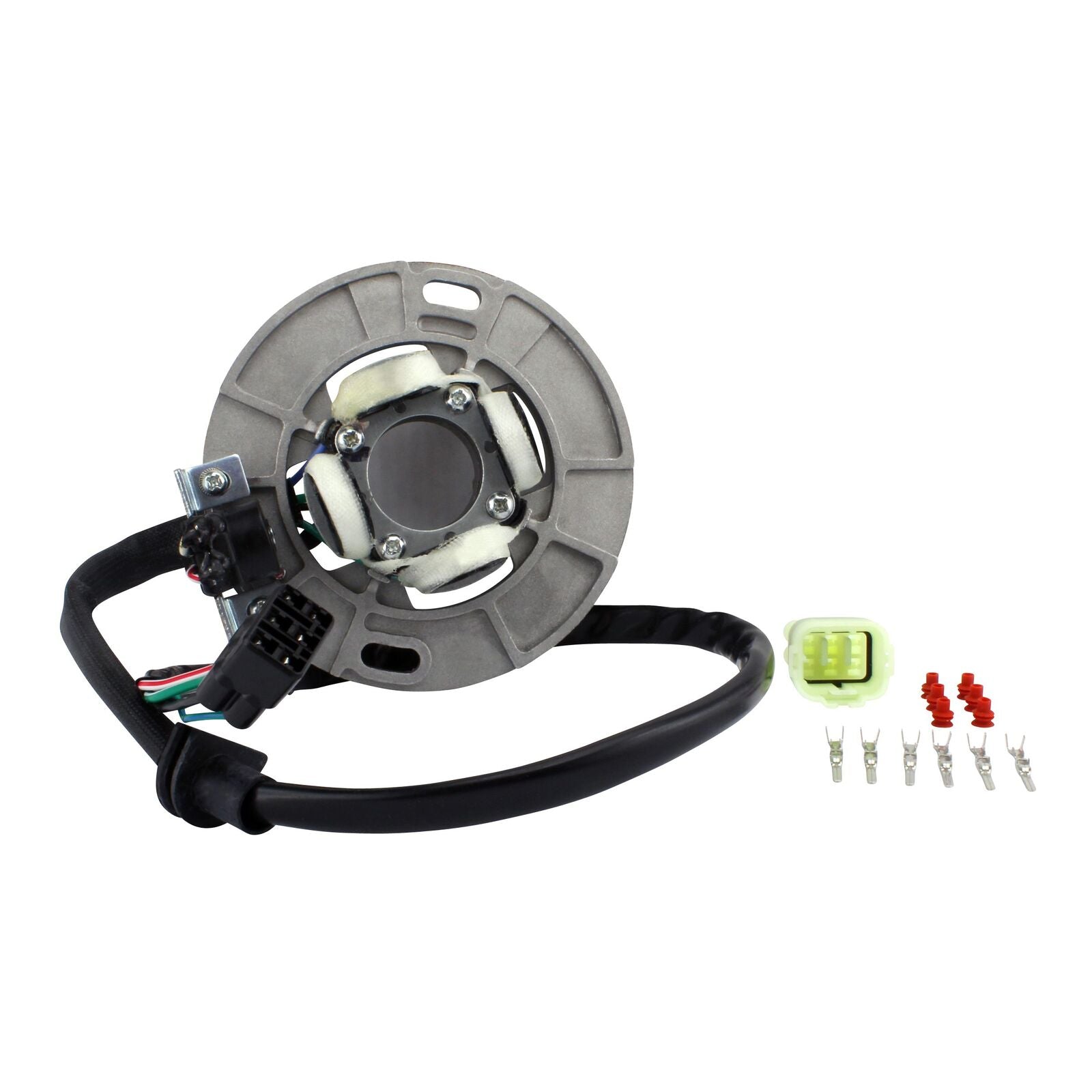

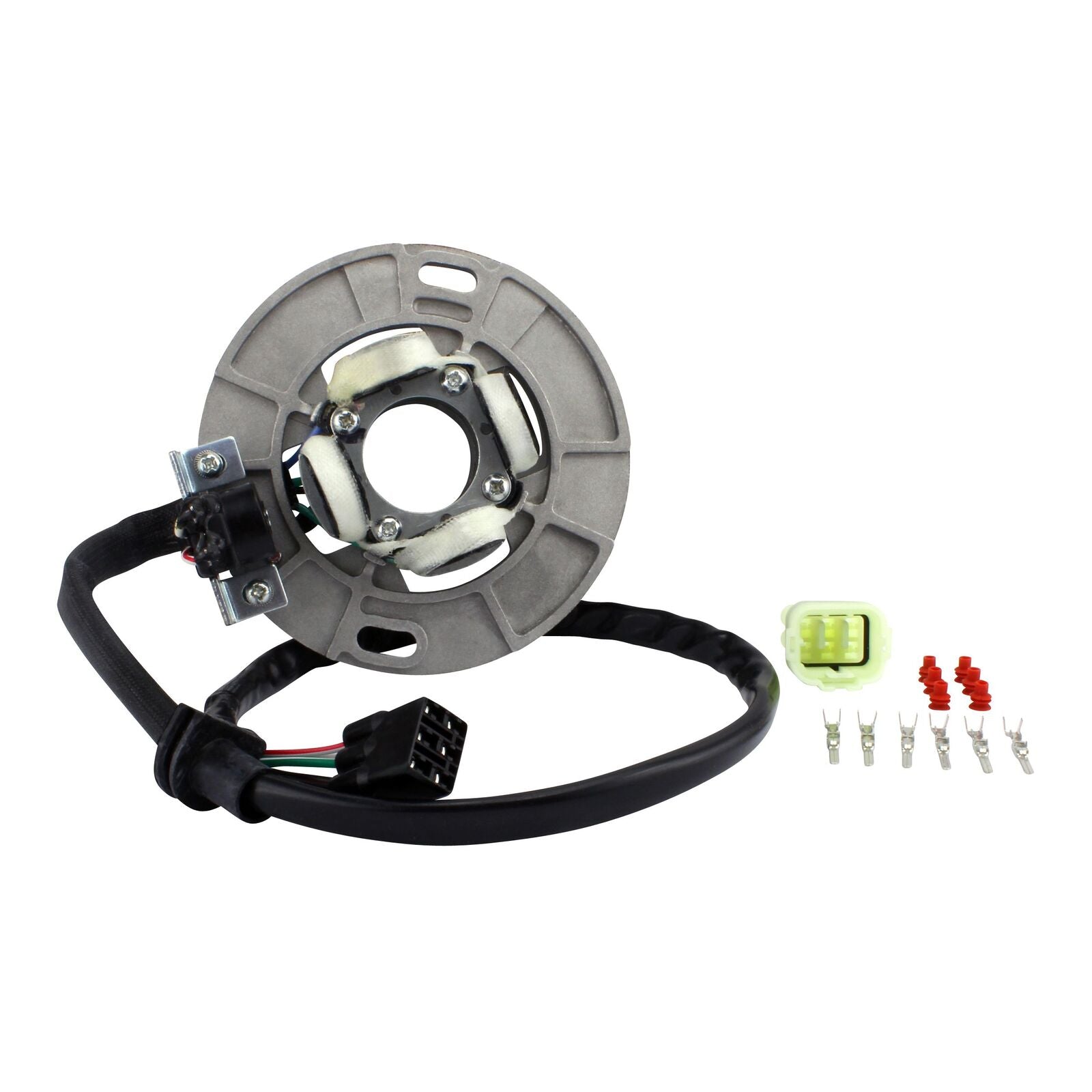

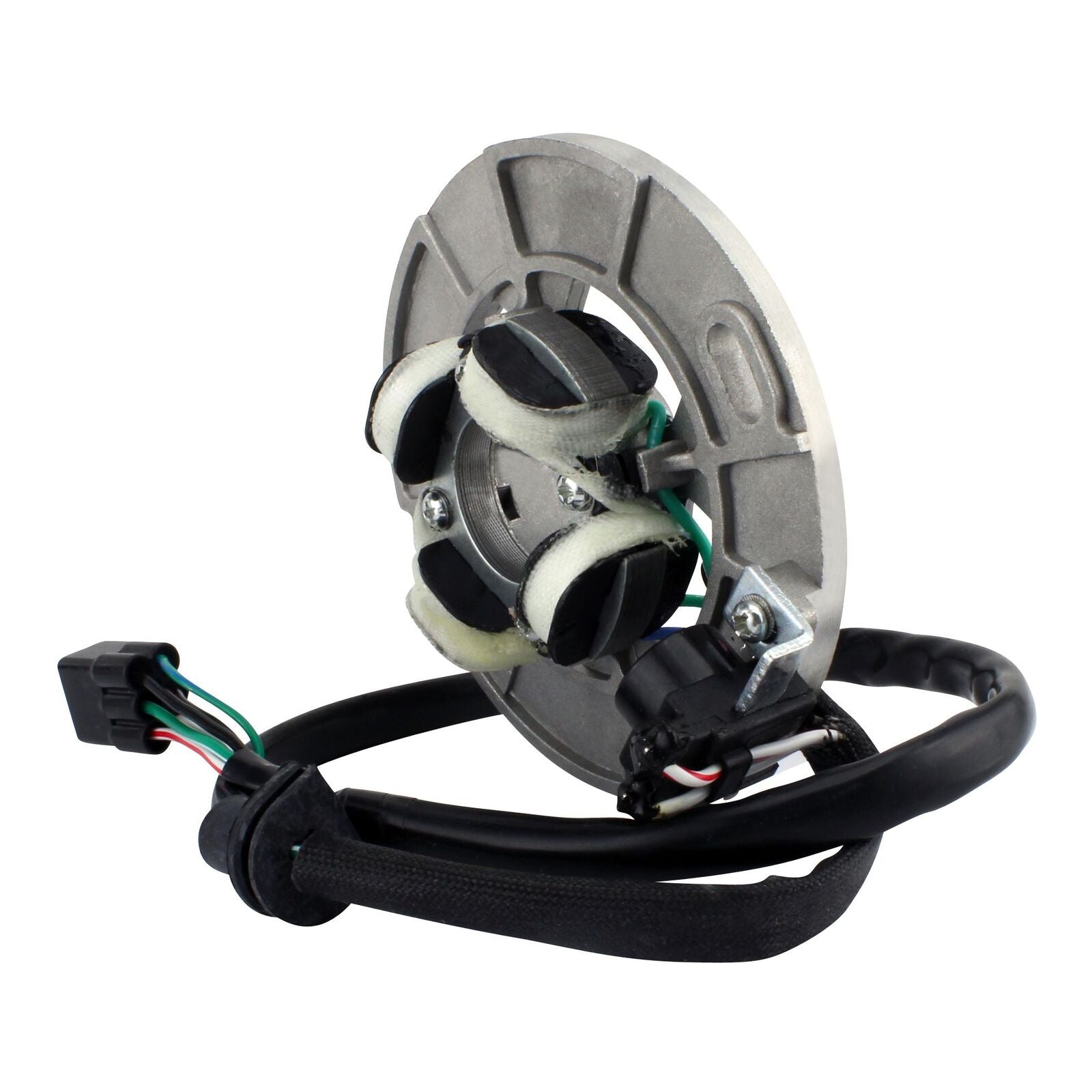

Brand new aftermarket stator.

• Direct replacement to the original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included

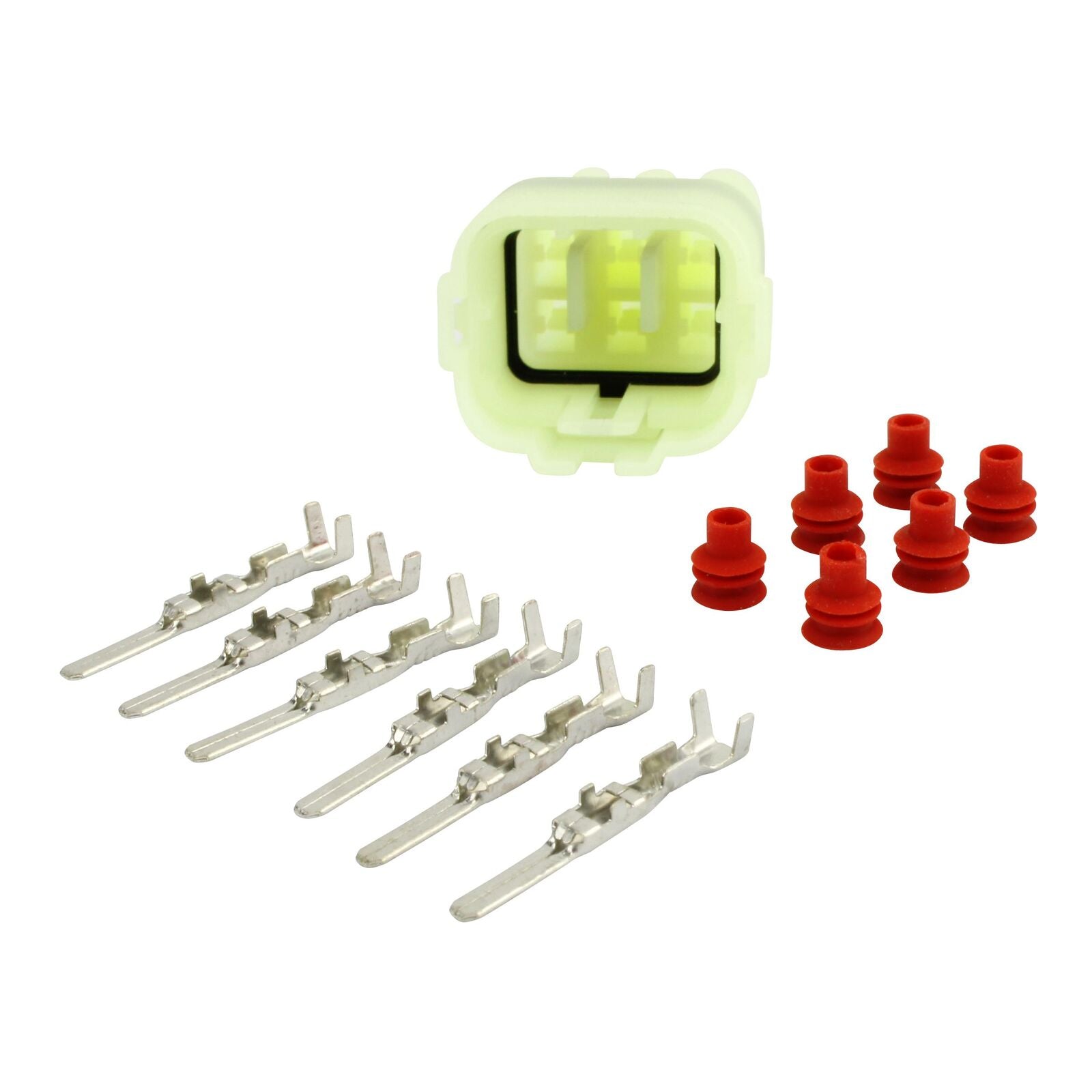

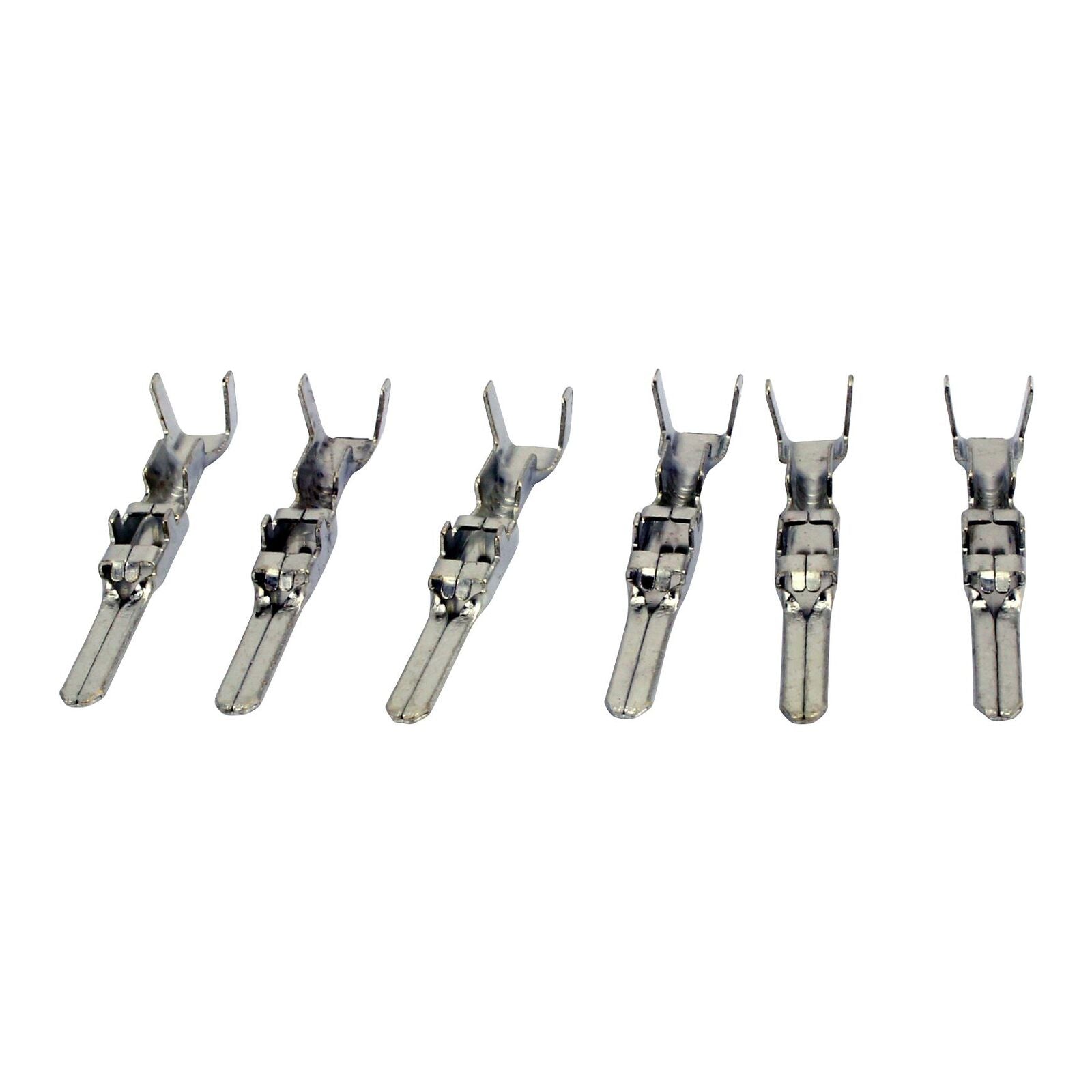

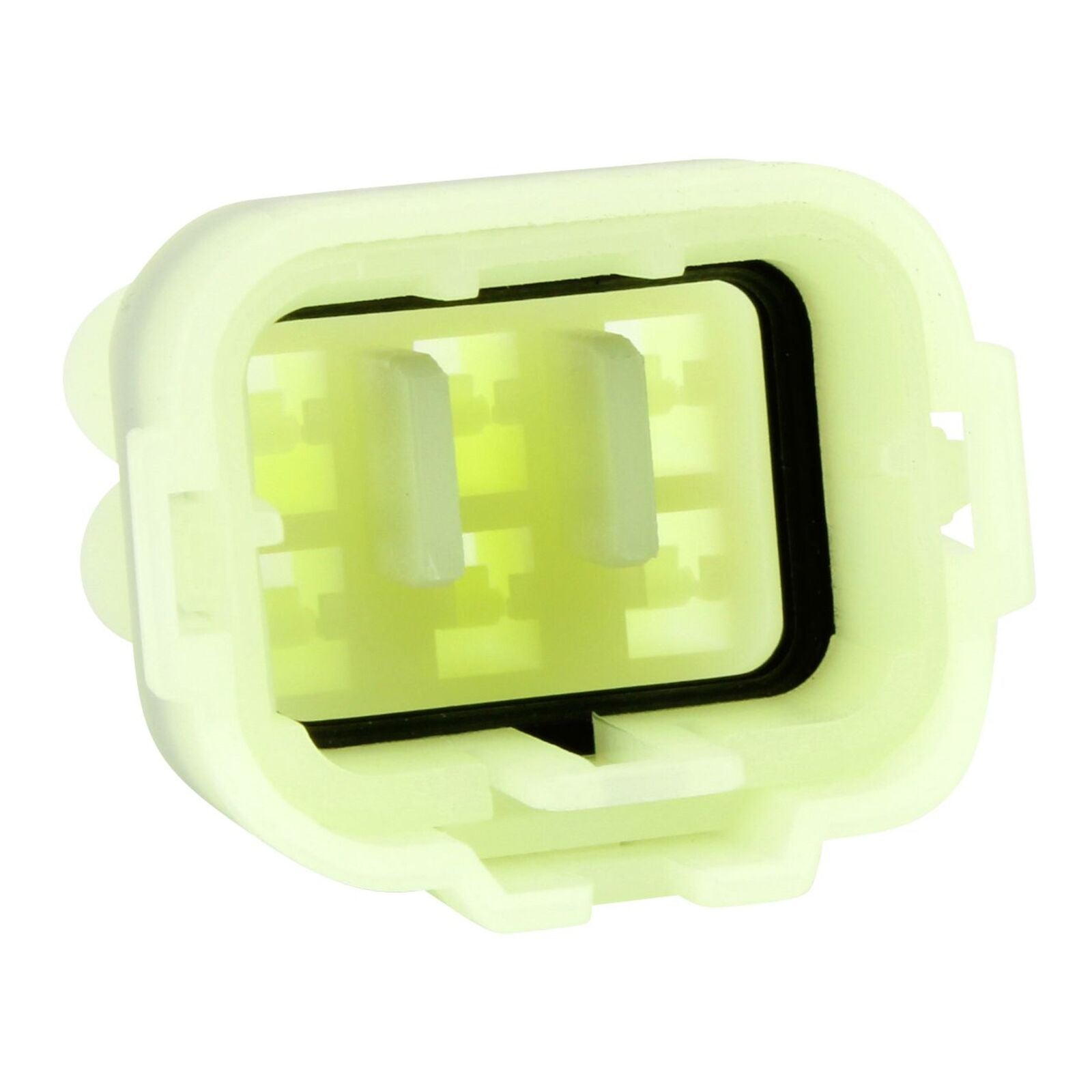

• Connectors included

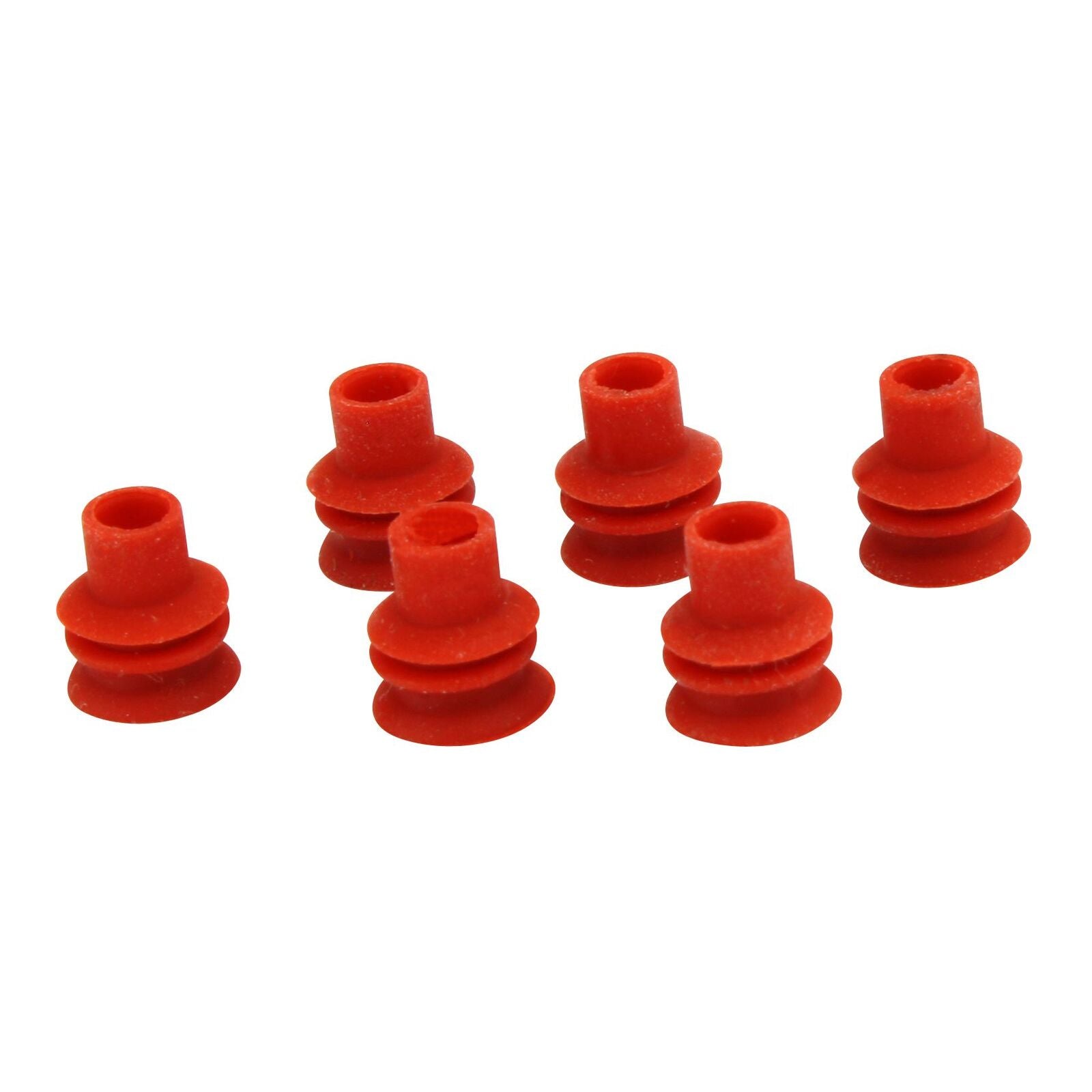

• Rubber grommet included
• Back Plate included
• All products shipped are tested

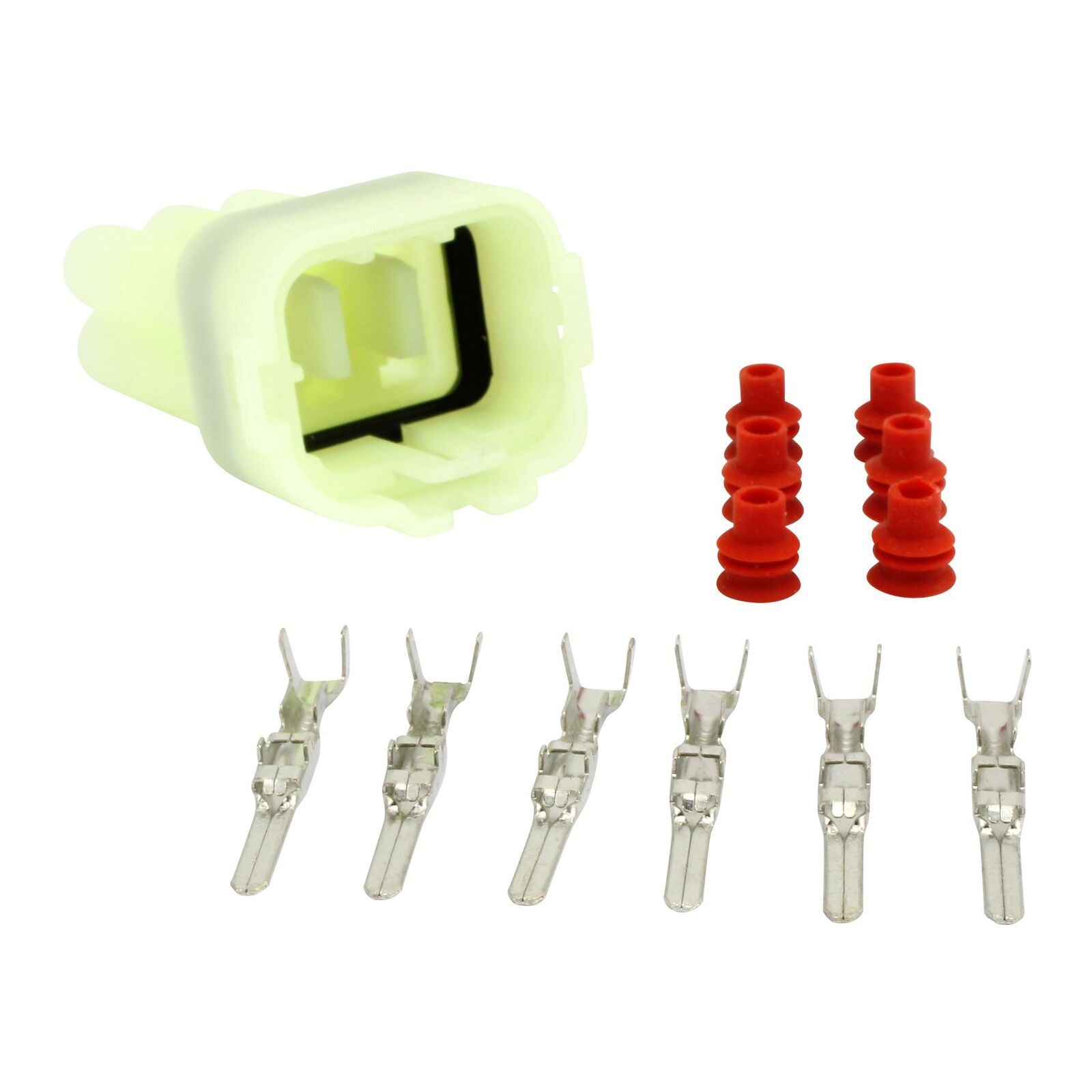

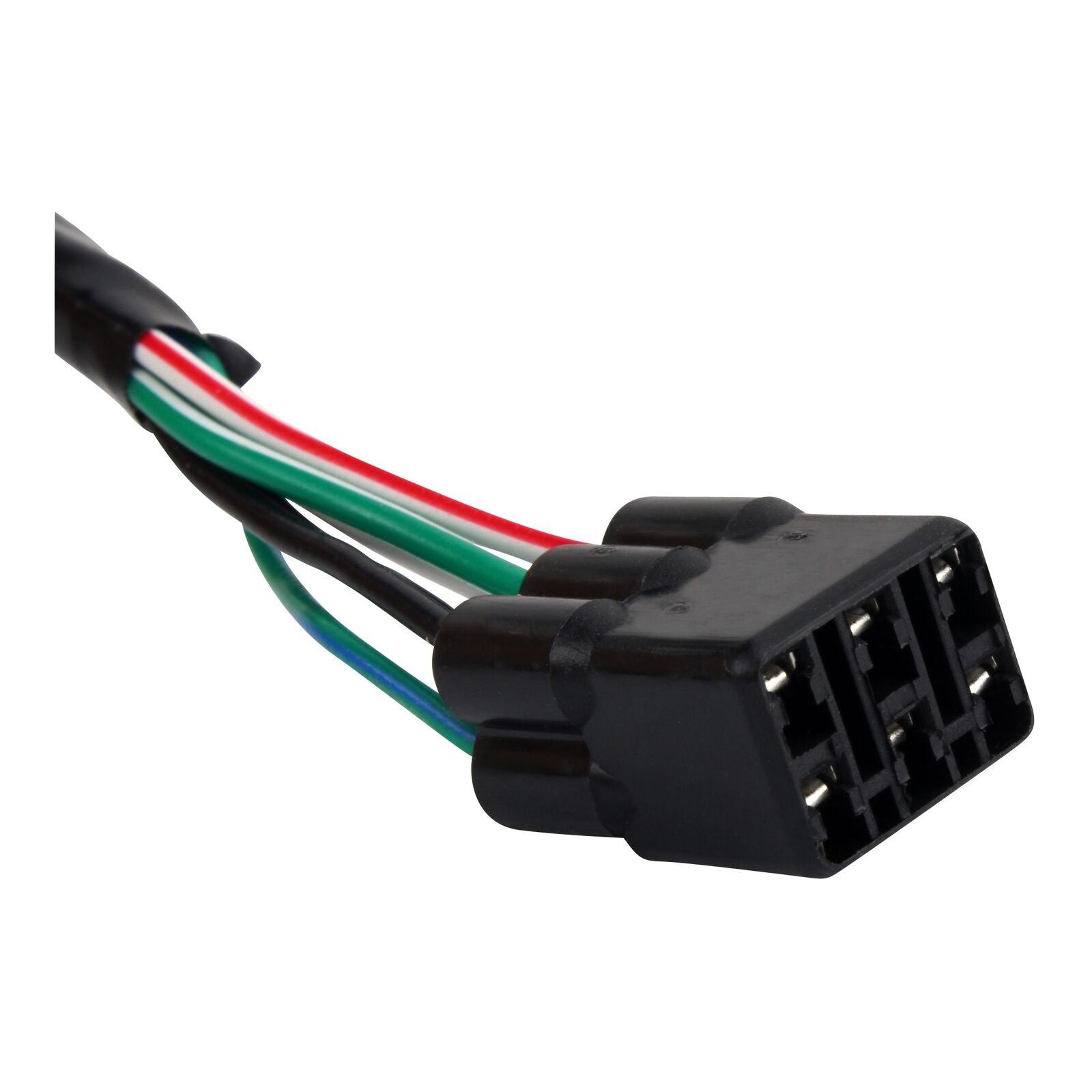

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.

Before installing the new stator:

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator rectifier.
• Check and repair any melted wiring.
• Use hi-temp dielectric grease on all connectors.

The stator might have a different wire colThe code than the original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

• Interior diameter: 27 mm
• Exterior diameter: 109 mm
• Thickness: 32.6 mm
• Length of wires stator to grommet: 135 mm
• Length of wires grommet to plug: 410 mm
• Length of pickup coil's wire to grommet: 135 mm

Other specifications:

• Number of wires: 6
• Number of plugs: 1
• Number of pins: 6
• Number of poles: 4
• Wire to wire resistance:
• Pickup: White/Blue to White/Red = 293 ohms +/-20%
• Source: Green/White to Black/Red = 858 ohms +/-20%
• Source: Black to Green/Blue = 53 ohms +/-20%
