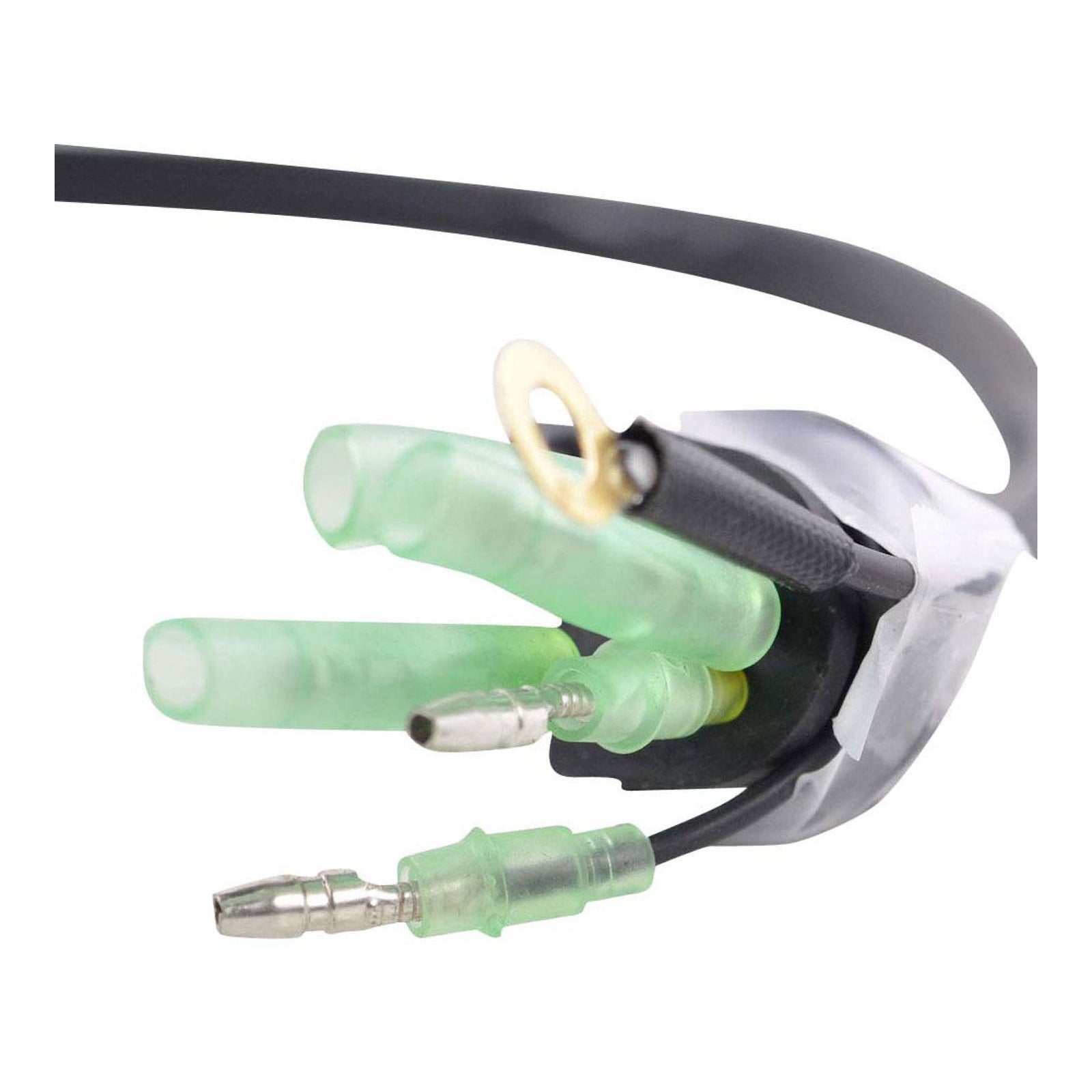

GENERATOR STATOR ASSTD YAM RFR FITMENTS (RMS010-103150)

Brand new aftermarket stator.

• Direct replacement to the original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Rubber grommet included
• Back Plate included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare The item to the original part.

Before Installing the New Stator

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator/rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

The stator may use a different wire colThe code than the original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

• Source diameter : 89 mm

Other Specifications:

• Number of wires: 6
• Number of plugs :
• Number of pins: 6
• Wire to wire resistance :
• Alternator : Green to Green = 1.6 ohms ±20%
• Pickup \:Yellow/White To Black = 16 ohms ±20%
• Source \:Brown to Black = 560 ohms ±20%
